Upgrade your grating installations with our J Clamp for GRP Mesh Grating, engineered for a safe, secure, and reliable hold. Ideal for use with fiberglass reinforced plastic (FRP/GRP) mesh grating, this heavy-duty clamp provides superior stability and corrosion resistance in demanding environments such as walkways, platforms, catwalks, and chemical plants.

Manufactured from high-quality galvanized steel or stainless steel, our J Clamps prevent grating panels from shifting or lifting, even under heavy foot traffic or load-bearing applications.

Key Features

• Designed for GRP/FRP mesh grating

• Made from corrosion-resistant steel

• Compatible with open mesh flooring and stair treads

• Simple and quick to install

• Provides a secure and flush finish

• Ideal for industrial, commercial, and marine applications

Installation Instructions

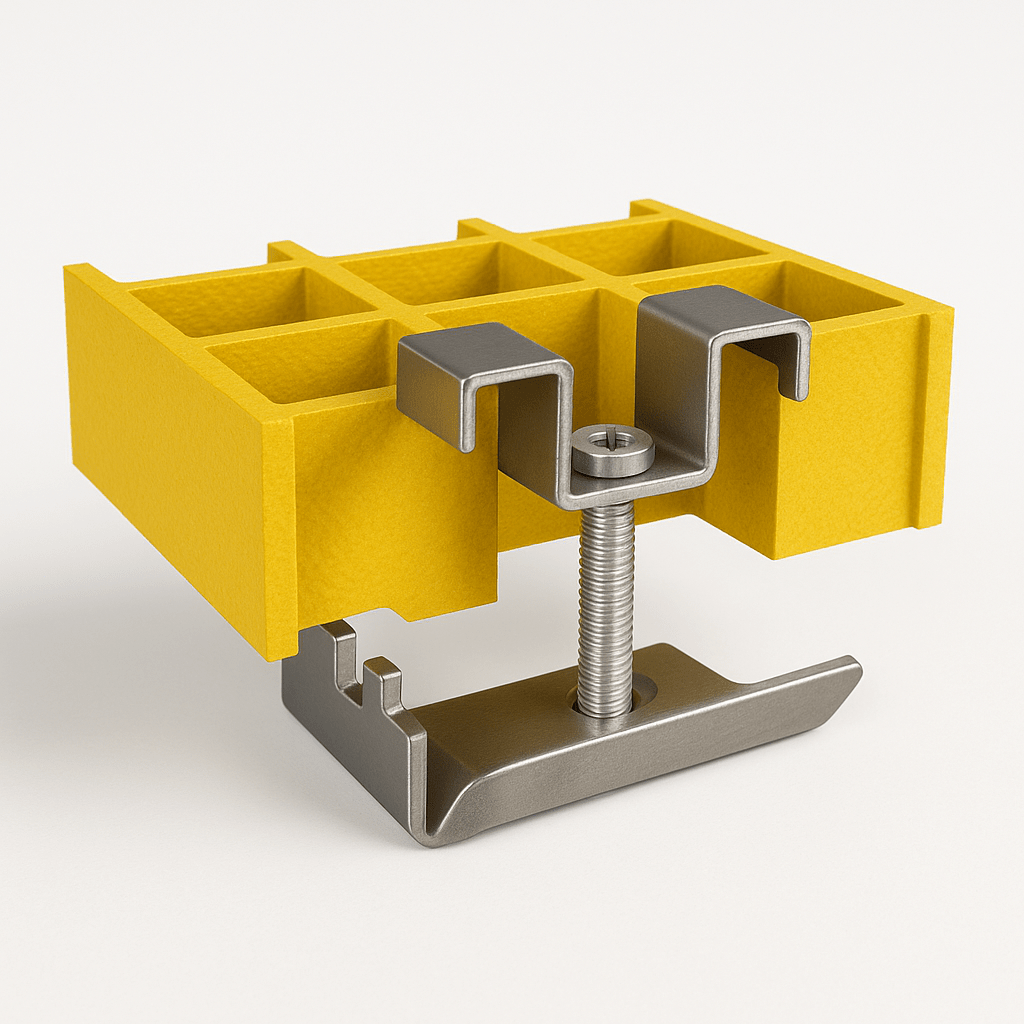

1. Align the J Clamp: Position the J Clamp so that the curved part hooks under the grating bar.

2. Insert the Bolt: Pass a bolt through the pre-drilled hole in the grating and into the J Clamp.

3. Tighten Securely: Using a spanner or socket wrench, tighten the nut to pull the clamp snugly against the underside of the grating and the support structure.

4. Repeat as Needed: Install clamps at recommended intervals—typically at each corner of the panel or every 500mm for larger sections.

Tip: Always ensure the grating is fully supported and the clamps are evenly tightened to avoid stress points.

Frequently Asked Questions (FAQs)

Q1: How many J clamps do I need per grating panel?
A: We recommend using at least 4 clamps per panel (one at each corner). Larger panels may require additional clamps at midpoints for added support.

Q2: Can J clamps be used with stair treads?
A: Yes, they are ideal for securing GRP stair treads to stringers, providing a firm hold that prevents slippage.

Q3: Are these clamps suitable for outdoor or marine environments?
A: Absolutely. Choose the stainless steel version for maximum corrosion resistance in outdoor, coastal, or chemical-prone environments.

Q4: Do I need special tools to install J clamps?
A: No special tools are needed—just a spanner or socket wrench to tighten the bolt.

Q5: What size bolt should I use?
A: Typically, an M8 or M10 bolt is used depending on the load and panel thickness. Always check the grating and support specifications.
